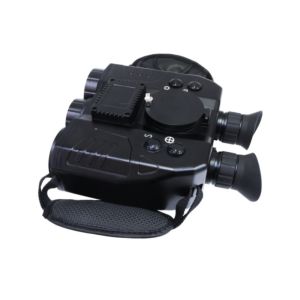

640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror

Place of Origin : China

Brand Name : OEM, ODM All Available

Certification : CE,FC,RoHS

MOQ : 10

Delivery Time : 3~7

Payment Terms : T/T. L/C, Western Union, Money Gram

Supply Ability : 30000PCS/Month

Model : HB6FM-Z

Exit Pupil Diam : 5MM

Magnification : 2

Sensor : Uncooled LWIR FPA

IR Detector Resolution : 640*512

IR Detector Pixel Pitch : 17μm

Size : 200mm*175mm*94mm

Weight : ≤1.60kg

Contact Now

High Quality 640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror

Parameter

Detector and lens
Resolution 640×512
Detector pitch 17μm
NETD ≤45mK@25℃
Spectral Range 8μm～14μm
Frame Frequency 25Hz
Focal Length 46.75 mm
Focus Manual
Low-level-light(CCD)and lens
Resolution 800×600
Detector pitch 18μm
Frame Frequency 25Hz
Focal Length 49.5 mm
Focus Manual
Image display
Display 0.39″OLED, 1024×768
Digital zoom 2x
Image adjustment Auto＆Manual shutter correction;brightness;contrast;polarity;image magnification
Detection and identification range
Detection range Human 1.7m×0.5m:1550m
Vehicle2.3m:2100m
Identification Range Human 1.7m×0.5m: 500m
Vehicle2.3m:700m
Interface
Video out Q9
Digital interface USB
Camera Control RS232
Tripod mounting Standard,UNC ¼"-20
Others
Range of visual adjustment -4°～+4°
Angle shows Electronic compass
Positioning system Beidou/GPS
Wireless transmission WiFi
Laser Designator Red laser 650 nm
Environmental data
Working Temperature -20℃～+50℃
Storage Temperature -45 ℃~+60℃
IP Level IP67
Physical data
Weight ≤1.60kg(including four 18650 lithium batteries )
Size ≤200mm×175mm×94mm


Features

640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror640*512 Resolution Binocular Night Vision Reconnaissance Thermal Imaging Mirror
